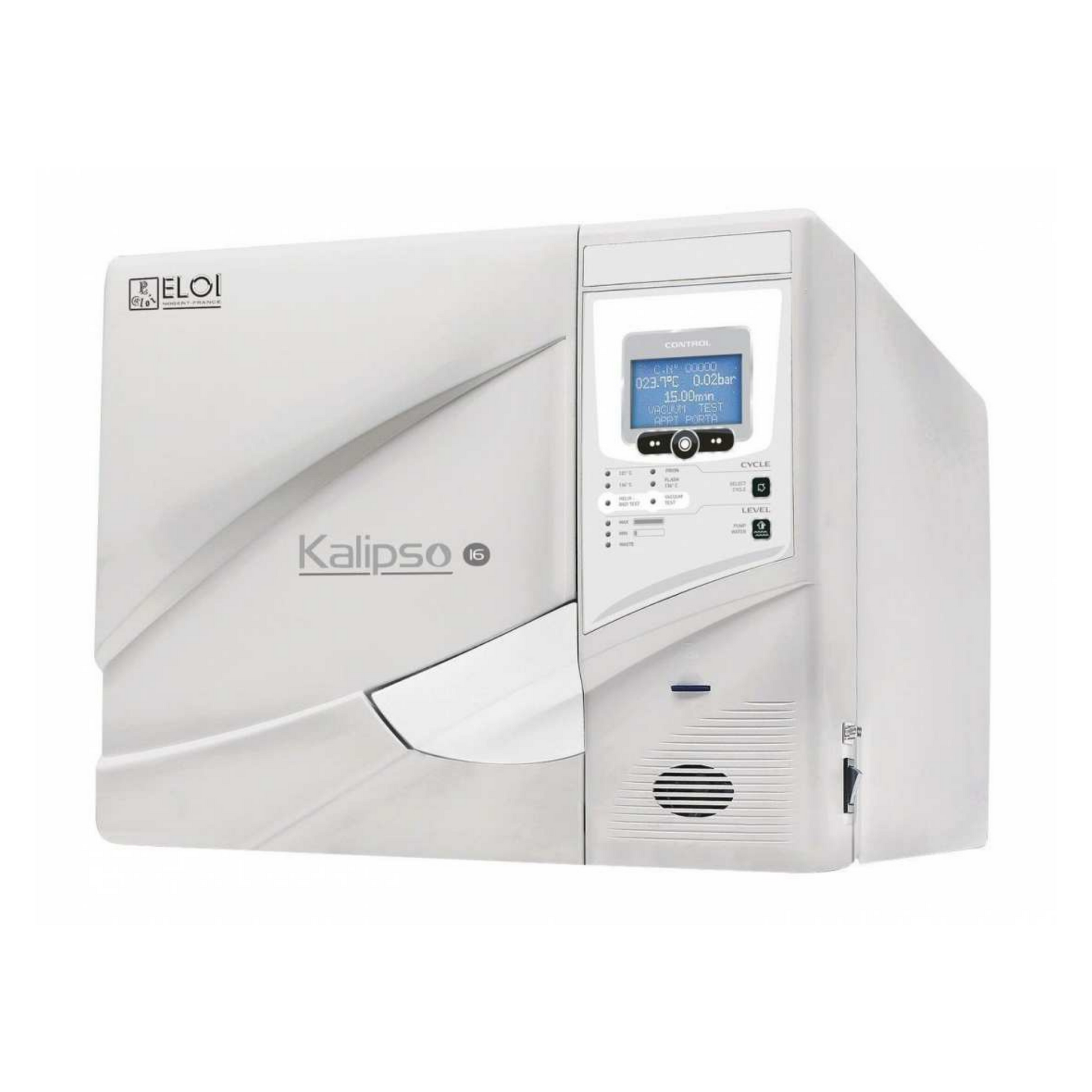

Autoclave KALIPSO 16L SD card by ELOI Podologie

1- TRACEABILITY : Collection and archiving of data from sterilization cycles
are managed by SD card. It is then easy to access the information
to create a traceability file if necessary.

2- SIMPLICITY : A large screen allows you to view all the information
necessary for the use of the machine. Cycle selection
retained is simple and quick.

3- RELIABILITY : High-end and latest electronic components
generation give Kalipso autoclaves exceptional reliability.

4- SAFETY : Mechanical and electromagnetic safety of the closure
from the door.
NIGHT CYCLE: The Kalispo power down all the
functions of the appliance, one minute after the end of the cycle. Equipped with a process
gradual cooling, no condensation is possible.

16 L - SD

TECHNICAL CHARACTERISTICS

• Dimensions L x H x D: 528 x 400 x 638 mm

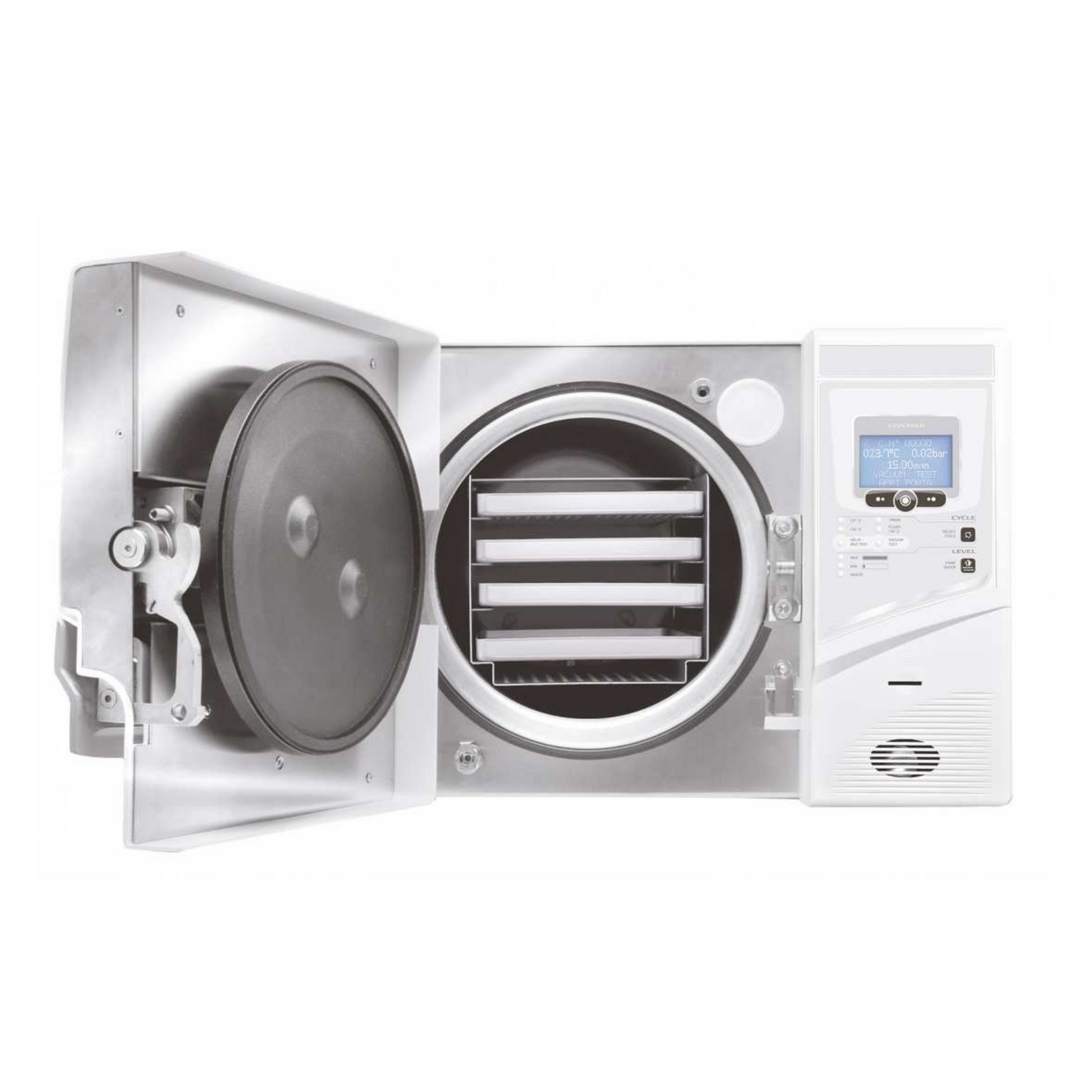

• Sterilization chamber: Ø 245 x D 320 mm
• Chamber material: AISI 304 stainless steel
• Chamber payload: 5 kgs
• Useful volume (l): 16
• Door closing: Manual
• Voltage / Frequency: 230V – 50/60 HZ
• Power: 1.4 kW
• Sound level: < 70 dB
• Weight: 57 kgs
• Standard accessories: 1 tray support
1 tray handle
• 4 aluminum trays: 184 x 17 x 286 mm
• Type of cycles and total average duration
4 pre-established cycles
> 121°C 60 min.
> 134°C 47 min.
> 134°C Flash 31 min.
> 134°C Let's pray 62 min.
• Total duration includes: vacuum, preheating, drying.
Times are given for a fully loaded autoclave.
Test Cycles
> Vacuum test 18 min.
> Helix B&D test 31 min.
